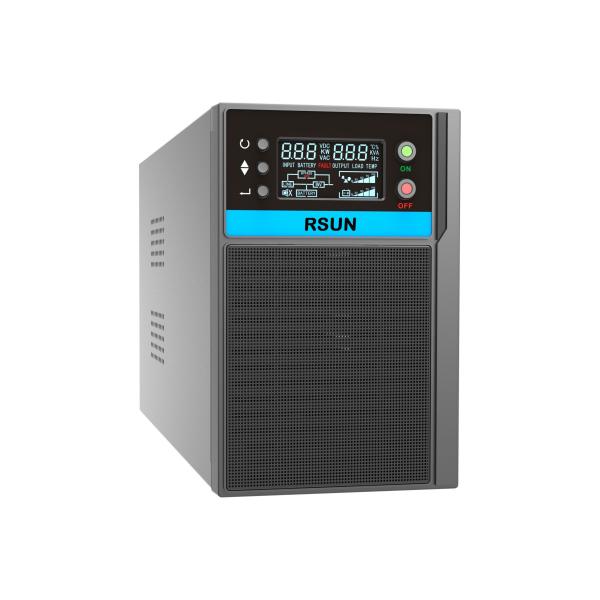

650VA 1KVA 2KVA 3KVA 5KVA Pure Sine Wave Line Interactive UPS LCD
for PC mini ups with battery backup
Description:
The RSUN BE Series UPS adopts advanced CPU-integrated control
technology and delivers a pure sine wave output. It features a wide
input voltage range and rapid transfer time, ensuring reliable
performance during power fluctuations. With built-in automatic
voltage regulation (AVR) and selectable charging current options,
it meets various user requirements. Long backup models are
available and can be connected to external batteries, offering
virtually unlimited backup time based on user needs.
FEATURES:
- 650VA, 850VA, 1000VA, 1500VA, 2000VA, 3000VA, 5000VA
- Double CPU controlled
- Silence function
- Pure sine wave output
- Compatible with generator
- Automatically transferred to battery mode when input over voltage
or under voltage
- Output overload and short circuit protection
- Can be connected to external battery for longer power supply
- Powerful charging current for high-capacity battery
- RJ11/RJ45,communication line protection function
- RS232/USB port(Optional),intelligent monitoring function
- Front panels optional
SPECIFICATIONS:
| Model NO. | BE650 | BE1000 | BE1500 | BE2000 | BE3000 | BE1000L | BE1500L | BE2000L | BE3000L |
| Capacity | 650VA/390W | 1000VA/800W | 1500VA/1200W | 2000VA/1600W | 3000VA/2400W | 1000VA/800W | 1500VA/1200W | 2000VA/1600W | 3000VA/2400W |
| Display | LCD |
| AC Mode |
| Input voltage range | 220V/230V/240V: 145~275Vac |
| Input frequency | 50Hz / 60Hz (Auto sensing) |
| Output voltage range | 220V/230V/240V: 200~240Vac |
| Efficiency | ≥ 96% (AC mode) |
| Inverter Mode |
| Output voltage range | 220Vac±5% |
| Output frequency | 50±0.5Hz / 60±0.5Hz |
| Output wave form | Pure sine wave |
| Transfer time | Typical 2~6ms, Max.10ms. |
| Overload capability | Automally shut down in 60sec while with 110% load, and shut down in
5sec while with 120% load |
| BATTERY |
| QTY & capacity of battery | 1pc*12V7Ah | 2 pc*12V7Ah | 2 pc*12V9Ah | 2/4pcs*12V7Ah | 4pcs*12V9Ah | External batteries(24V), capacity depends on user's choice. | External batteries(48V), capacity depends on user's choice. |
| Charging period | 6~8 hours recover to 90% capacity |
| Charging current | 1.3A | 5A/10A (Optional) |
| MANAGEMENT |
| USB | Optional (Refer to customers' requires) |
| PROTECTION |
| PROTECTIONS | 1. Auto re-starts when AC recovers
2. Automatic charging (offline charging)
3. Battery low voltage protection
4. Overload & Short circuit protection
4.Over current protection (Breaker for AC mode; System automaticlly
shut down wihin 20ms in Inverter mode). |
| PHYSICAL |
| Unit dimension (mm) | 305*85*141 | 384*122*192 | 455*195*330 | 345*122*192 | 455*195*330 |
| Net weight (1pc, kg) | 4.8 | 11 | 13 | 22.0 | 24.5 | 9.2 | 11.8 | 18.0 | 21.4 |
Support all kinds of output sockets:
Compatible with a broad array of international socket standards,
including but not limited to Schuko (Type F), Universal, IEC C13 /
C14, Italian (Type L), NEMA (Type A / B), Brazilian (Type N),
British (Type G), French (Type E), South African (Type M),
Australian (Type I), Swiss (Type J), and Indian (Type D) outlets -
ensuring seamless adaptability across diverse regional power
requirements.
APPLICATIONS:
• Gaming Consoles & High-Performance PCs
Stable power for gaming systems and custom-built computers.
• Desktop Workstations
Ideal for design, engineering, and content creation setups.
• Network Equipment
Supports routers, switches, modems, and firewalls.
• Telephone & PBX Systems
Ensures uninterrupted business communication.
• External Computer Accessories
Powers hard drives, printers, and other peripherals.
• Security Cameras & DVR / NVR Systems
Keeps surveillance systems running during outages.
• Telecom & VoIP Systems
Protects IP phones, gateways, and telecom servers.
